Name: SMBJ90AH
Brand: Taiwan Semiconductor Corporation
SKU: SMBJ90AH
Price: 0.42 USD
Availability: InStock

REF: SMBJ90AH Taiwan Semiconductor Corporation

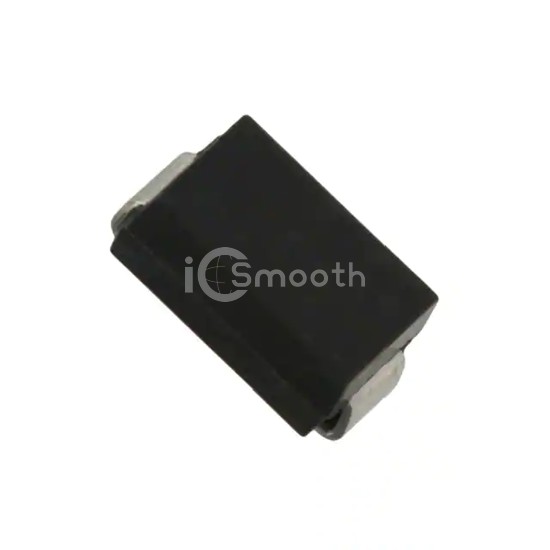

SMBJ90AH

Taiwan Semiconductor Corporation

TVS DIODE 90VWM 146VC DO214AA

SMBJ90AH is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 90VWM 146VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Request a Quote

In Stock: 9,329

Tiered Pricing USD

1+ $0.4200 —

10+ $0.3260 -22%

100+ $0.1960 -53%

500+ $0.1720 -59%

1,000+ $0.1270 -70% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	90V
Voltage - Breakdown (Min)	100V
Voltage - Clamping (Max) @ Ipp	146V
Current - Peak Pulse (10/1000µs)	4.3A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
