Name: SMBJ22AH
Brand: Taiwan Semiconductor Corporation
SKU: SMBJ22AH
Price: 0.41 USD
Availability: InStock

REF: SMBJ22AH Taiwan Semiconductor Corporation

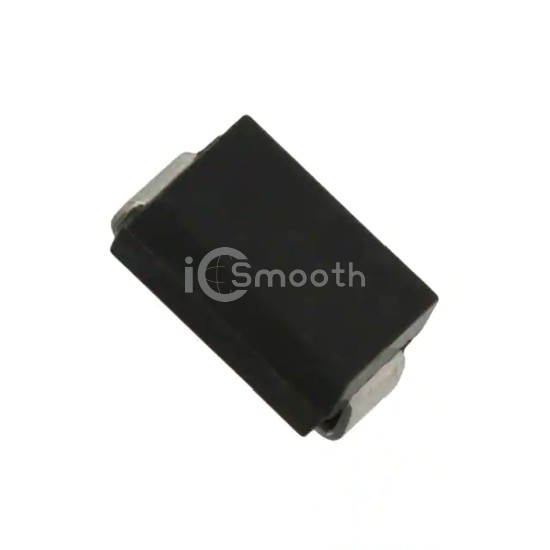

SMBJ22AH

Taiwan Semiconductor Corporation

TVS DIODE 22VWM 35.5VC DO214AA

SMBJ22AH is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 22VWM 35.5VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Request a Quote

In Stock: 6,806

Tiered Pricing USD

1+ $0.4100 —

10+ $0.2530 -38% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	17.7A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
