Name: P4SMA56AH
Brand: Taiwan Semiconductor Corporation
SKU: P4SMA56AH
Price: 0.08 USD
Availability: InStock

REF: P4SMA56AH Taiwan Semiconductor Corporation

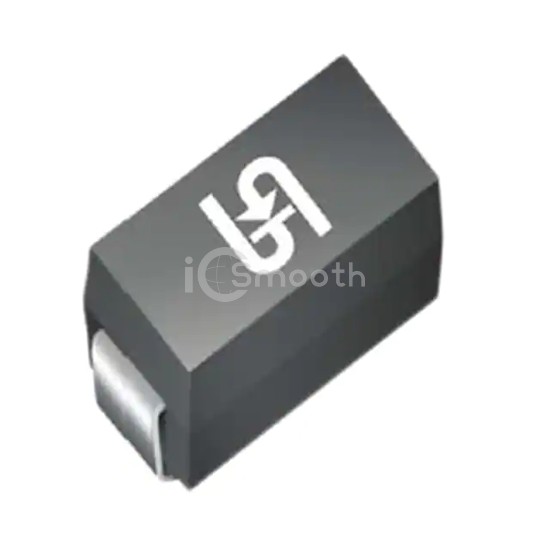

P4SMA56AH

Taiwan Semiconductor Corporation

TVS DIODE 47.8VWM 77VC DO214AC

P4SMA56AH is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 47.8VWM 77VC DO214AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 4,121

Tiered Pricing USD

7,500+ $0.0800 —

15,000+ $0.0732 -9%

22,500+ $0.0697 -13%

37,500+ $0.0658 -18%

52,500+ $0.0635 -21%

75,000+ $0.0612 -24% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	47.8V
Voltage - Breakdown (Min)	53.2V
Voltage - Clamping (Max) @ Ipp	77V
Current - Peak Pulse (10/1000µs)	5.4A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
