BZY55B20 RYG

In Stock: 7,556

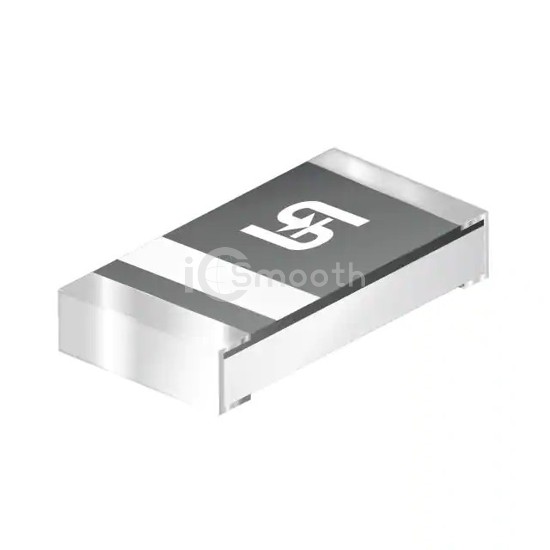

BZY55B20 RYG - Taiwan Semiconductor Corporation - Diodes - Zener - Single
REF: BZY55B20 RYG Taiwan Semiconductor Corporation
BZY55B20 RYG

Taiwan Semiconductor Corporation

DIODE ZENER 20V 500MW 0805

BZY55B20 RYG is a Diodes - Zener - Single manufactured by Taiwan Semiconductor Corporation. DIODE ZENER 20V 500MW 0805. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0805 (2012 Metric), power - max 500 mW.

Datasheet Request a Quote

In Stock: 7,556

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)20 V
Tolerance±2%
Power - Max500 mW
Impedance (Max) (Zzt)55 Ohms
Current - Reverse Leakage @ Vr100 nA @ 15 V
Voltage - Forward (Vf) (Max) @ If1.5 V @ 10 mA
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case0805 (2012 Metric)
Supplier Device Package0805
