BZT52C22S RRG

In Stock: 9,655

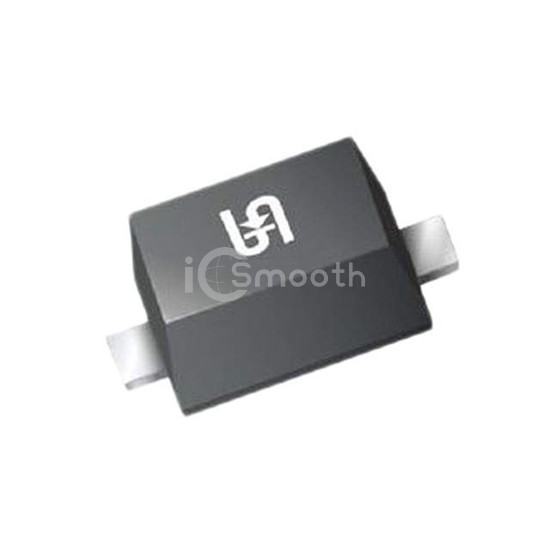

BZT52C22S RRG - Taiwan Semiconductor Corporation - Diodes - Zener - Single
REF: BZT52C22S RRG Taiwan Semiconductor Corporation
BZT52C22S RRG

Taiwan Semiconductor Corporation

DIODE ZENER 22V 200MW SOD323F

BZT52C22S RRG is a Diodes - Zener - Single manufactured by Taiwan Semiconductor Corporation. DIODE ZENER 22V 200MW SOD323F. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-90, SOD-323F, power - max 200 mW.

Datasheet Request a Quote

In Stock: 9,655

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±5%
Power - Max200 mW
Impedance (Max) (Zzt)55 Ohms
Current - Reverse Leakage @ Vr45 nA @ 15.4 V
Voltage - Forward (Vf) (Max) @ If1 V @ 10 mA
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-90, SOD-323F
Supplier Device PackageSOD-323F
