Name: BC338-40 B1G
Brand: Taiwan Semiconductor Corporation
SKU: BC338-40 B1G
Availability: InStock

REF: BC338-40 B1G Taiwan Semiconductor Corporation

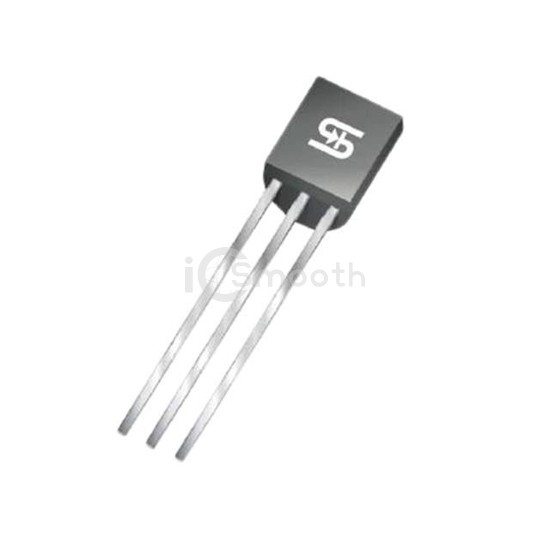

BC338-40 B1G

TRANS NPN 25V 0.8A TO92

BC338-40 B1G is a Transistors - Bipolar (BJT) - Single manufactured by Taiwan Semiconductor Corporation. TRANS NPN 25V 0.8A TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), current - collector (ic) (max) 800 mA.

Datasheet Request a Quote

In Stock: 3,799

Specifications

13 parameters

Product Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	800 mA
Voltage - Collector Emitter Breakdown (Max)	25 V
Vce Saturation (Max) @ Ib, Ic	700mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	250 @ 100mA, 5V

Power - Max	625 mW
Frequency - Transition	100MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
