Taiwan Semiconductor Corporation

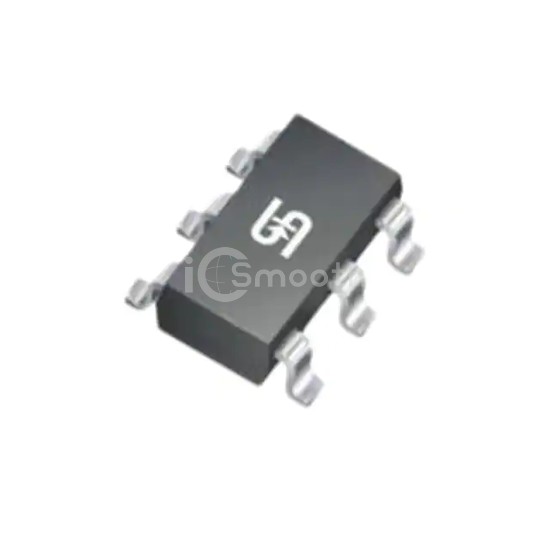

DIODE ARRAY SCHOTTKY 30V SOT363
BAT54SD REG is a Diodes - Rectifiers - Arrays manufactured by Taiwan Semiconductor Corporation. DIODE ARRAY SCHOTTKY 30V SOT363. Key specifications: mounting type Surface Mount, package / case 6-TSSOP, SC-88, SOT-363.
In Stock: 9,559
| Product Status | Active |
|---|---|
| Diode Configuration | 2 Pair Series Connection |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
|---|---|
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
