2M22ZH

In Stock: 5,184

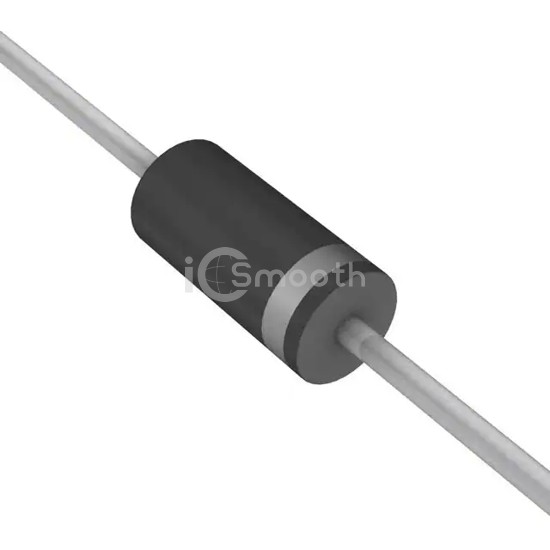

2M22ZH - Taiwan Semiconductor Corporation - Diodes - Zener - Single
REF: 2M22ZH Taiwan Semiconductor Corporation
2M22ZH

Taiwan Semiconductor Corporation

DIODE ZENER 22V 2W DO204AC

2M22ZH is a Diodes - Zener - Single manufactured by Taiwan Semiconductor Corporation. DIODE ZENER 22V 2W DO204AC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-204AC, DO-15, Axial, power - max 2 W.

Datasheet Request a Quote

In Stock: 5,184

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±5%
Power - Max2 W
Impedance (Max) (Zzt)12 Ohms
Current - Reverse Leakage @ Vr500 nA @ 16.7 V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseDO-204AC, DO-15, Axial
Supplier Device PackageDO-204AC (DO-15)
