1SMB5949

In Stock: 5,810

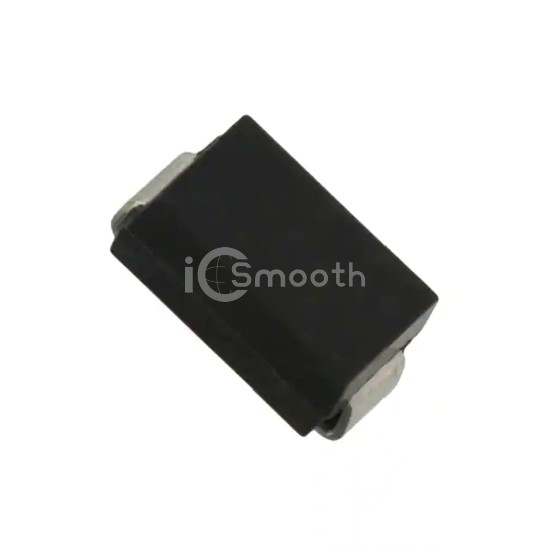

1SMB5949 - Taiwan Semiconductor Corporation - Diodes - Zener - Single
REF: 1SMB5949 Taiwan Semiconductor Corporation
1SMB5949

Taiwan Semiconductor Corporation

DIODE ZENER 100V 3W DO214AA

1SMB5949 is a Diodes - Zener - Single manufactured by Taiwan Semiconductor Corporation. DIODE ZENER 100V 3W DO214AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB, power - max 3 W.

Datasheet Request a Quote

In Stock: 5,810

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)100 V
Tolerance±5%
Power - Max3 W
Impedance (Max) (Zzt)250 Ohms
Current - Reverse Leakage @ Vr1 µA @ 76 V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageDO-214AA (SMB)
