1SMA5947H

In Stock: 5,349

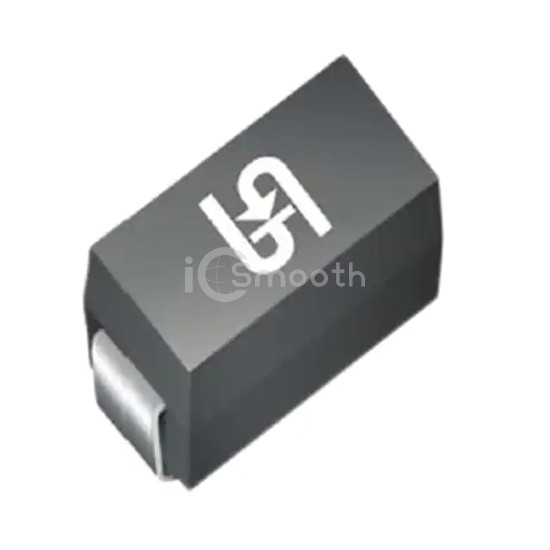

1SMA5947H - Taiwan Semiconductor Corporation - Diodes - Zener - Single
REF: 1SMA5947H Taiwan Semiconductor Corporation
1SMA5947H

Taiwan Semiconductor Corporation

DIODE ZENER 82V 1.5W DO214AC

1SMA5947H is a Diodes - Zener - Single manufactured by Taiwan Semiconductor Corporation. DIODE ZENER 82V 1.5W DO214AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AC, SMA, power - max 1.5 W.

Datasheet Request a Quote

In Stock: 5,349

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)82 V
Tolerance±5%
Power - Max1.5 W
Impedance (Max) (Zzt)160 Ohms
Current - Reverse Leakage @ Vr500 nA @ 62.2 V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
