1PGSMA4745

In Stock: 3,575

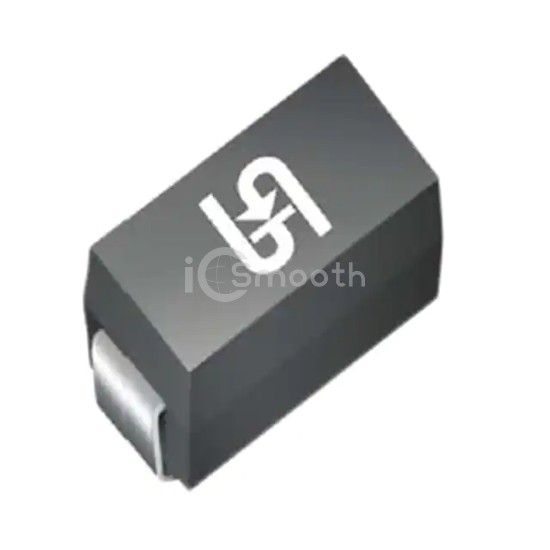

1PGSMA4745 - Taiwan Semiconductor Corporation - Diodes - Zener - Single
REF: 1PGSMA4745 Taiwan Semiconductor Corporation
1PGSMA4745

Taiwan Semiconductor Corporation

DIODE ZENER 16V 1.25W DO214AC

1PGSMA4745 is a Diodes - Zener - Single manufactured by Taiwan Semiconductor Corporation. DIODE ZENER 16V 1.25W DO214AC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-214AC, SMA, power - max 1.25 W.

Datasheet Request a Quote

In Stock: 3,575

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)16 V
Tolerance±5%
Power - Max1.25 W
Impedance (Max) (Zzt)16 Ohms
Current - Reverse Leakage @ Vr1 µA @ 12.2 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
