Name: 1KSMB56AHR5G
Brand: Taiwan Semiconductor Corporation
SKU: 1KSMB56AHR5G
Availability: InStock

REF: 1KSMB56AHR5G Taiwan Semiconductor Corporation

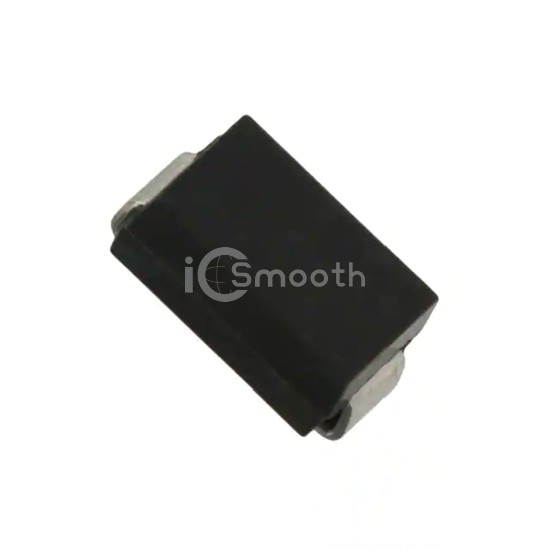

1KSMB56AHR5G

TVS DIODE 47.8VWM 77VC DO214AA

1KSMB56AHR5G is a TVS - Diodes manufactured by Taiwan Semiconductor Corporation. TVS DIODE 47.8VWM 77VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 5,310

Specifications

16 parameters

Product Status	Discontinued at Digi-Key
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	47.8V
Voltage - Breakdown (Min)	53.2V
Voltage - Clamping (Max) @ Ipp	77V
Current - Peak Pulse (10/1000µs)	13A

Power - Peak Pulse	1000W (1kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
