Name: Z0409NF 1AA2
Brand: STMicroelectronics
SKU: Z0409NF 1AA2
Availability: InStock

REF: Z0409NF 1AA2 STMicroelectronics

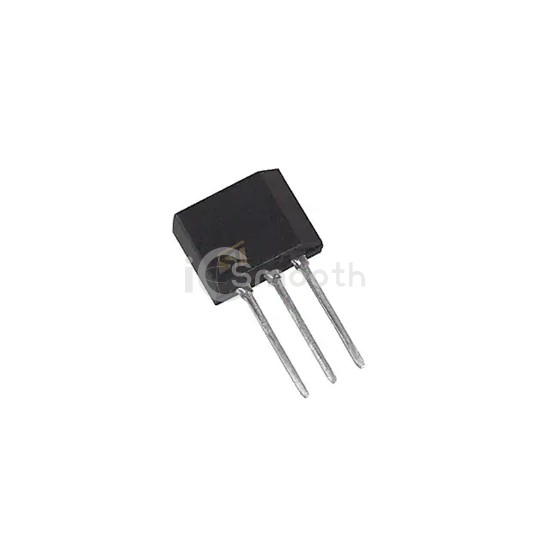

Z0409NF 1AA2

TRIAC SENS GATE 800V 4A TO202

Z0409NF 1AA2 is a Thyristors - TRIACs manufactured by STMicroelectronics. TRIAC SENS GATE 800V 4A TO202. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-202 No Tab.

Datasheet Request a Quote

In Stock: 5,972

Specifications

13 parameters

Product Status	Obsolete
Triac Type	Logic - Sensitive Gate
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	20A, 21A
Current - Gate Trigger (Igt) (Max)	10 mA

Current - Hold (Ih) (Max)	10 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-202 No Tab
Supplier Device Package	TO-202-3
