X0402NF 1AA2

In Stock: 8,549

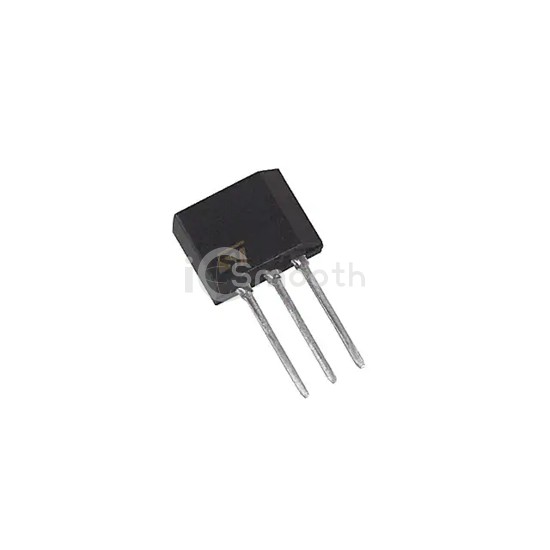

X0402NF 1AA2 - STMicroelectronics - Thyristors - SCRs
REF: X0402NF 1AA2 STMicroelectronics
X0402NF 1AA2

STMicroelectronics

SCR 800V 1.35A TO202-3

X0402NF 1AA2 is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 800V 1.35A TO202-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-202 No Tab.

Datasheet Request a Quote

In Stock: 8,549

Specifications

15 parameters
Product StatusObsolete
Voltage - Off State800 V
Voltage - Gate Trigger (Vgt) (Max)800 mV
Current - Gate Trigger (Igt) (Max)200 µA
Voltage - On State (Vtm) (Max)1.8 V
Current - On State (It (AV)) (Max)900 mA
Current - On State (It (RMS)) (Max)1.35 A
Current - Hold (Ih) (Max)5 mA
Current - Off State (Max)5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)30A, 33A
SCR TypeSensitive Gate
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-202 No Tab
Supplier Device PackageTO-202-3
