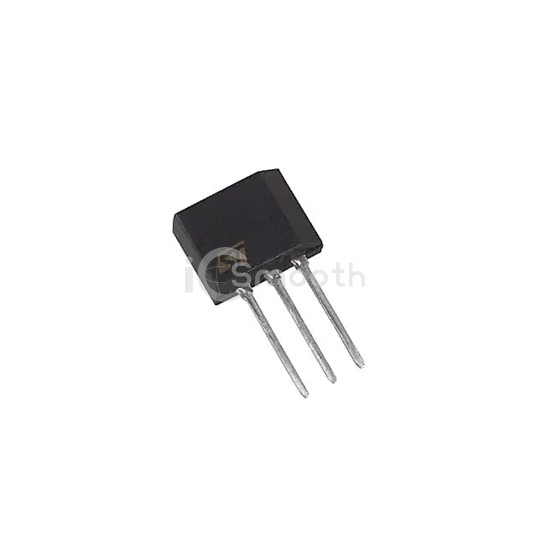

Name: X0402MF 1AA2
Brand: STMicroelectronics
SKU: X0402MF 1AA2
Price: 0.46 USD
Availability: InStock

REF: X0402MF 1AA2 STMicroelectronics

X0402MF 1AA2

STMicroelectronics

SCR 600V 1.35A TO202-3

X0402MF 1AA2 is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 600V 1.35A TO202-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-202 No Tab.

Datasheet Request a Quote

In Stock: 8,057

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	900 mA
Current - On State (It (RMS)) (Max)	1.35 A
Current - Hold (Ih) (Max)	5 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	30A, 33A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-202 No Tab
Supplier Device Package	TO-202-3
