Name: X0202NUF
Brand: STMicroelectronics
SKU: X0202NUF
Price: 0.68 USD
Availability: InStock

REF: X0202NUF STMicroelectronics

X0202NUF

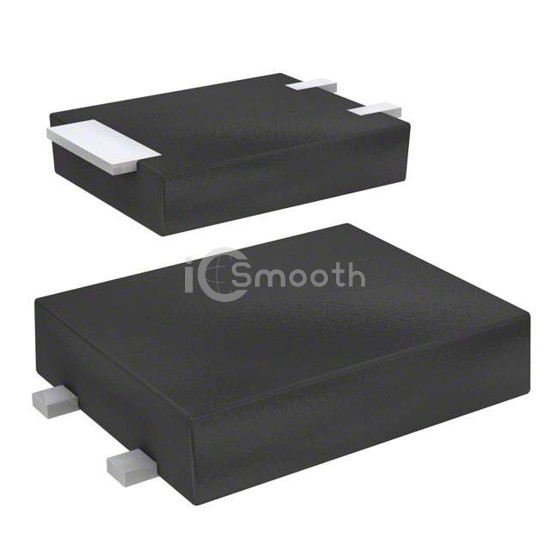

SCR 800V 1.25A SMBFLAT-3L

X0202NUF is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 800V 1.25A SMBFLAT-3L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 3-SMB, Flat Lead.

Datasheet Request a Quote

In Stock: 7,055

Tiered Pricing USD

1+ $0.6800 —

10+ $0.4210 -38%

100+ $0.2701 -60%

500+ $0.2050 -70%

1,000+ $0.1840 -73%

2,000+ $0.1663 -76% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	1.45 V
Current - On State (It (AV)) (Max)	800 mA
Current - On State (It (RMS)) (Max)	1.25 A
Current - Hold (Ih) (Max)	5 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	22.5A, 25A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	3-SMB, Flat Lead
Supplier Device Package	SMBflat-3L
