Name: X0115MUF
Brand: STMicroelectronics
SKU: X0115MUF
Price: 0.64 USD
Availability: InStock

REF: X0115MUF STMicroelectronics

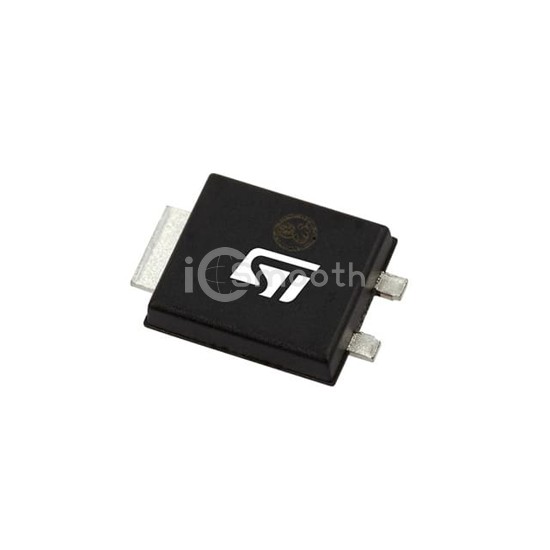

X0115MUF

SCR 1A 600V SMBFLAT-3L

X0115MUF is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1A 600V SMBFLAT-3L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 3-SMB, Flat Lead.

Datasheet Request a Quote

In Stock: 26,692

Tiered Pricing USD

1+ $0.6400 —

10+ $0.3980 -38%

100+ $0.2551 -60%

500+ $0.1932 -70%

1,000+ $0.1732 -73%

2,000+ $0.1564 -76% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	150 µA
Voltage - On State (Vtm) (Max)	1.4 V
Current - On State (It (AV)) (Max)	640 mA
Current - On State (It (RMS)) (Max)	1 A
Current - Hold (Ih) (Max)	5 mA

Current - Off State (Max)	1 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-SMB, Flat Lead
Supplier Device Package	SMBflat-3L
