VN5770AKPTR-E

In Stock: 1,139

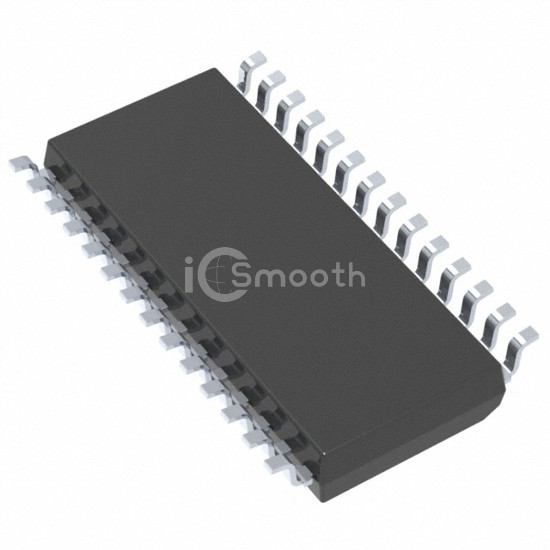

VN5770AKPTR-E - STMicroelectronics - PMIC - Full, Half-Bridge Drivers
REF: VN5770AKPTR-E STMicroelectronics
VN5770AKPTR-E

STMicroelectronics

IC MOTOR DRIVER PAR 28SO

VN5770AKPTR-E is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 28SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 36V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,139

Tiered Pricing USD
1+ $3.0500 —
10+ $2.2830 -25%
25+ $2.0912 -31%
100+ $1.8807 -38%
250+ $1.7803 -42%
500+ $1.7197 -44% BEST

Specifications

17 parameters
Product StatusNot For New Designs
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose, Relays
InterfaceLogic
Load TypeInductive, Capacitive, Resistive
TechnologyPower MOSFET
Rds On (Typ)160mOhm
Current - Output / Channel8.5A
Current - Peak Output-
Voltage - Supply4.5V ~ 36V
Voltage - Load41V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
