Name: VIPER15HN
Brand: STMicroelectronics
SKU: VIPER15HN
Price: 1.22 USD
Availability: InStock

REF: VIPER15HN STMicroelectronics

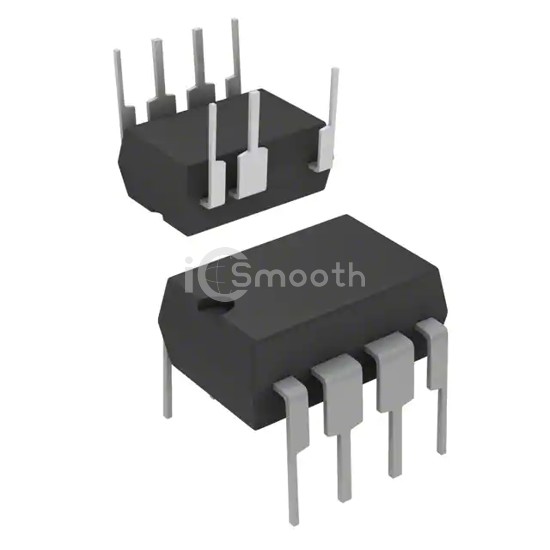

VIPER15HN

IC OFFLINE SWITCH FLYBACK 7DIP

VIPER15HN is a PMIC - AC DC Converters, Offline Switchers manufactured by STMicroelectronics. IC OFFLINE SWITCH FLYBACK 7DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 8.5V ~ 23.5V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Datasheet Request a Quote

In Stock: 1,656

Tiered Pricing USD

1+ $1.2200 —

10+ $0.8830 -28%

25+ $0.7988 -35%

100+ $0.7064 -42%

250+ $0.6624 -46%

500+ $0.6358 -48% BEST

Specifications

16 parameters

Product Status	Obsolete
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	800V
Topology	Flyback
Voltage - Start Up	14 V
Voltage - Supply (Vcc/Vdd)	8.5V ~ 23.5V
Duty Cycle	-

Frequency - Switching	225kHz
Power (Watts)	10 W
Fault Protection	Current Limiting, Over Temperature, Over Voltage
Control Features	-
Operating Temperature	-40°C ~ 150°C (TJ)
Package / Case	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package	7-DIP
Mounting Type	Through Hole
