Name: VIPER115HSTR
Brand: STMicroelectronics
SKU: VIPER115HSTR
Price: 1.13 USD
Availability: InStock

REF: VIPER115HSTR STMicroelectronics

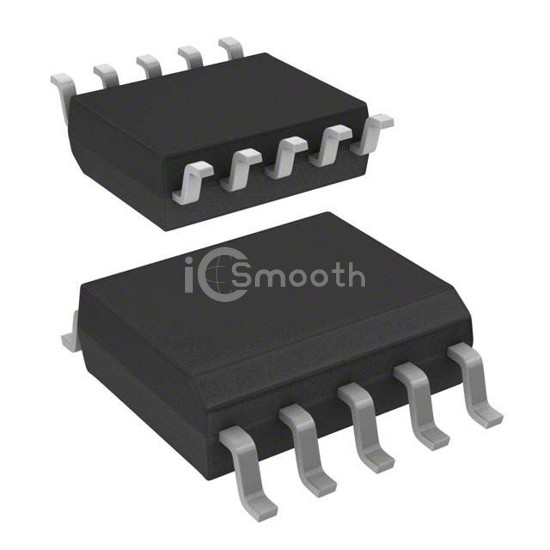

VIPER115HSTR

STMicroelectronics

IC OFFLINE SW MULT TOP 10SSOP

VIPER115HSTR is a PMIC - AC DC Converters, Offline Switchers manufactured by STMicroelectronics. IC OFFLINE SW MULT TOP 10SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 30V, package / case 10-SOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,665

Tiered Pricing USD

1+ $1.1300 —

10+ $0.8200 -27%

25+ $0.7412 -34%

100+ $0.6545 -42%

250+ $0.6132 -46%

500+ $0.5884 -48%

1,000+ $0.5679 -50% BEST

Specifications

16 parameters

Product Status	Active
Output Isolation	Non-Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	800V
Topology	Buck, Buck-Boost, Flyback
Voltage - Start Up	16 V
Voltage - Supply (Vcc/Vdd)	4.5V ~ 30V
Duty Cycle	80%

Frequency - Switching	120kHz
Power (Watts)	12 W
Fault Protection	Current Limiting, Over Load, Over Voltage, Short Circuit
Control Features	Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Package / Case	10-SOP (0.154", 3.90mm Width)
Supplier Device Package	10-SSOP
Mounting Type	Surface Mount
