Name: VIPER06HS
Brand: STMicroelectronics
SKU: VIPER06HS
Price: 1.53 USD
Availability: InStock

REF: VIPER06HS STMicroelectronics

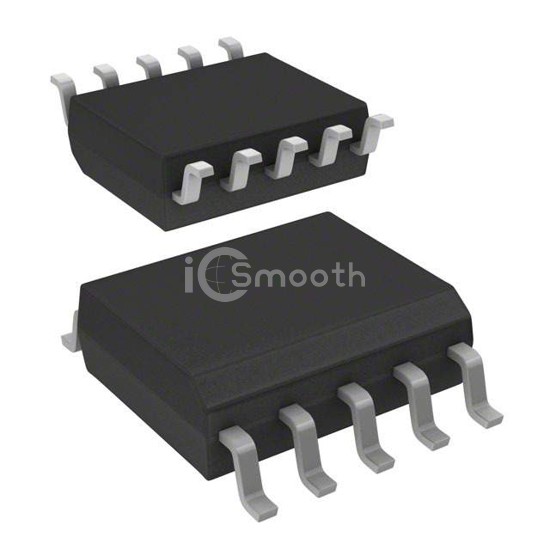

VIPER06HS

IC OFFLINE SWITCH MULT TOP 10SSO

VIPER06HS is a PMIC - AC DC Converters, Offline Switchers manufactured by STMicroelectronics. IC OFFLINE SWITCH MULT TOP 10SSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 11.5V ~ 23.5V, package / case 10-SOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,446

Tiered Pricing USD

1+ $1.5300 —

10+ $1.1220 -27%

25+ $1.0208 -33%

100+ $0.9092 -41%

300+ $0.8471 -45%

500+ $0.8241 -46%

1,000+ $0.8139 -47% BEST

Specifications

16 parameters

Product Status	Active
Output Isolation	Either
Internal Switch(s)	Yes
Voltage - Breakdown	800V
Topology	Buck, Flyback
Voltage - Start Up	13 V
Voltage - Supply (Vcc/Vdd)	11.5V ~ 23.5V
Duty Cycle	70%

Frequency - Switching	115kHz
Power (Watts)	8 W
Fault Protection	Current Limiting, Open Loop, Over Temperature
Control Features	-
Operating Temperature	-40°C ~ 150°C (TJ)
Package / Case	10-SOP (0.154", 3.90mm Width)
Supplier Device Package	10-SSOP
Mounting Type	Surface Mount
