Name: TSB582IQ2T
Brand: STMicroelectronics
SKU: TSB582IQ2T
Price: 3.79 USD
Availability: InStock

REF: TSB582IQ2T STMicroelectronics

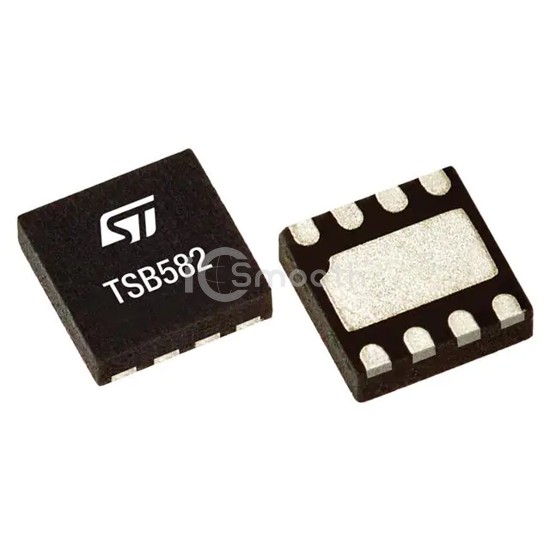

TSB582IQ2T

HIGH OUTPUT CURRENT WITH THERMAL

TSB582IQ2T is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by STMicroelectronics. HIGH OUTPUT CURRENT WITH THERMAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WDFN Exposed Pad, current - supply 2.5mA (x2 Channels).

Datasheet Request a Quote

In Stock: 4,985

Specifications

17 parameters

Product Status	Active
Amplifier Type	CMOS
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	2V/µs
Gain Bandwidth Product	3.1 MHz
-3db Bandwidth	-
Current - Input Bias	2 nA
Voltage - Input Offset	2.4 mV

Current - Supply	2.5mA (x2 Channels)
Current - Output / Channel	200 mA
Voltage - Supply Span (Min)	2 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-DFN (3x3)
