Name: TSA1204IFT
Brand: STMicroelectronics
SKU: TSA1204IFT
Price: 12.48 USD
Availability: InStock

REF: TSA1204IFT STMicroelectronics

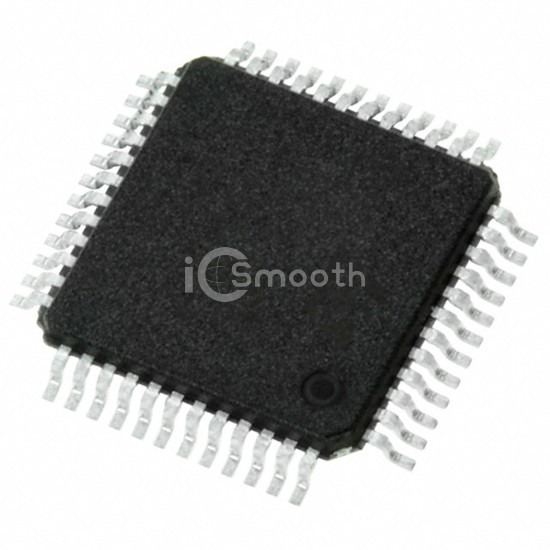

TSA1204IFT

IC ADC 12BIT PIPELINED 48TQFP

TSA1204IFT is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by STMicroelectronics. IC ADC 12BIT PIPELINED 48TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.25V ~ 2.7V, package / case 48-TQFP.

Datasheet Request a Quote

In Stock: 2,503

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	12
Sampling Rate (Per Second)	20M
Number of Inputs	2
Input Type	Differential
Data Interface	Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	2.25V ~ 2.7V
Voltage - Supply, Digital	2.25V ~ 2.7V
Features	Simultaneous Sampling
Operating Temperature	-40°C ~ 85°C
Package / Case	48-TQFP
Supplier Device Package	48-TQFP (7x7)
Mounting Type	Surface Mount
