Name: TS972IQT
Brand: STMicroelectronics
SKU: TS972IQT
Price: 2.69 USD
Availability: InStock

REF: TS972IQT STMicroelectronics

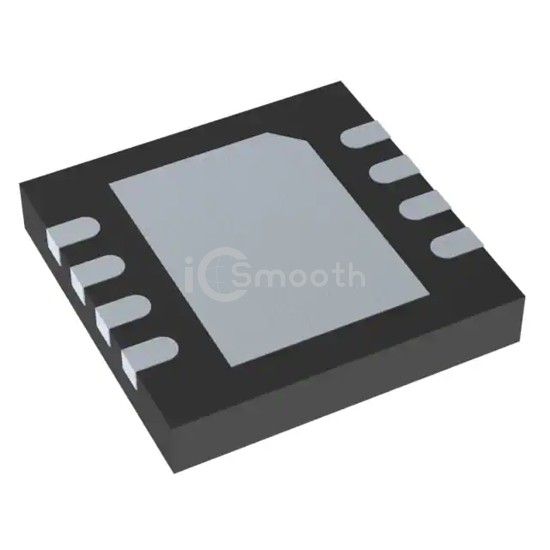

TS972IQT

IC OPAMP GP 2 CIRCUIT 8DFN

TS972IQT is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by STMicroelectronics. IC OPAMP GP 2 CIRCUIT 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFDFN Exposed Pad, current - supply 2mA (x2 Channels).

Datasheet Request a Quote

In Stock: 7,136

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	4V/µs
Gain Bandwidth Product	12 MHz
-3db Bandwidth	-
Current - Input Bias	200 nA
Voltage - Input Offset	1 mV

Current - Supply	2mA (x2 Channels)
Current - Output / Channel	100 mA
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	10 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-VFDFN Exposed Pad
Supplier Device Package	8-DFN (3x3)
