Name: TS110-8UF
Brand: STMicroelectronics
SKU: TS110-8UF
Price: 1.12 USD
Availability: InStock

REF: TS110-8UF STMicroelectronics

TS110-8UF

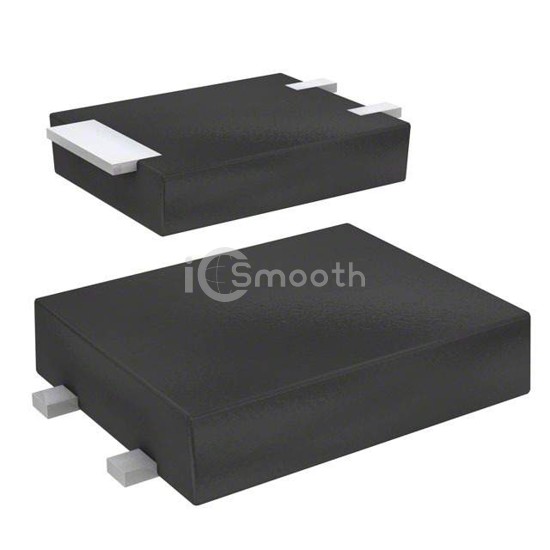

SCR 800V 1.25A SMBFLAT-3L

TS110-8UF is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 800V 1.25A SMBFLAT-3L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case DO-221AA, SMB Flat Leads.

Datasheet Request a Quote

In Stock: 5,783

Tiered Pricing USD

1+ $1.1200 —

10+ $0.7040 -37%

100+ $0.4615 -59%

500+ $0.3574 -68%

1,000+ $0.3239 -71%

2,000+ $0.2957 -74% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	100 µA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	800 mA
Current - On State (It (RMS)) (Max)	1.25 A
Current - Hold (Ih) (Max)	12 mA

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	20A, 21A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	DO-221AA, SMB Flat Leads
Supplier Device Package	SMBflat-3L
