Name: TS110-8A1-AP
Brand: STMicroelectronics
SKU: TS110-8A1-AP
Price: 0.26 USD
Availability: InStock

REF: TS110-8A1-AP STMicroelectronics

TS110-8A1-AP

STMicroelectronics

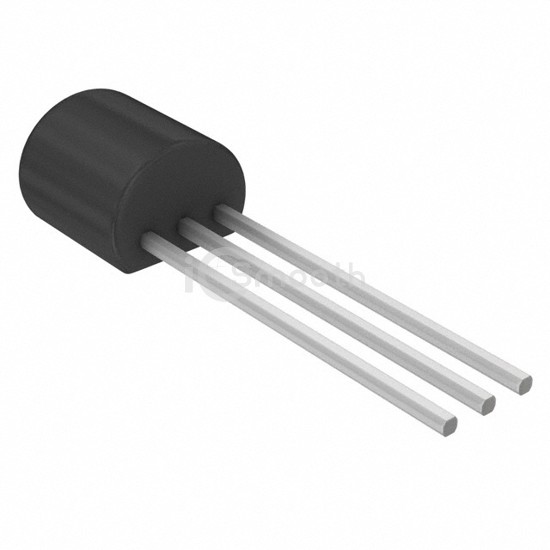

SCR 800V 1.25A TO92

TS110-8A1-AP is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 800V 1.25A TO92. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-226-3, TO-92-3 (TO-226AA).

Datasheet Request a Quote

In Stock: 61

Tiered Pricing USD

2,000+ $0.2627 —

4,000+ $0.2411 -8%

6,000+ $0.2301 -12%

10,000+ $0.2178 -17%

14,000+ $0.2105 -20%

20,000+ $0.2046 -22% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	100 µA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	800 mA
Current - On State (It (RMS)) (Max)	1.25 A
Current - Hold (Ih) (Max)	12 mA

Current - Off State (Max)	1 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20A, 21A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	-
