Name: TS110-7UF
Brand: STMicroelectronics
SKU: TS110-7UF
Price: 1.56 USD
Availability: InStock

REF: TS110-7UF STMicroelectronics

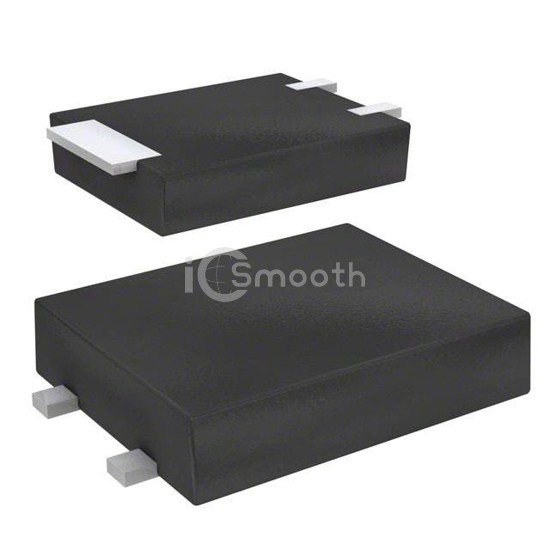

TS110-7UF

SCR 700V 1.25A SMBFLAT-3L

TS110-7UF is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 700V 1.25A SMBFLAT-3L. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case DO-221AA, SMB Flat Leads.

Datasheet Request a Quote

In Stock: 5,000

Tiered Pricing USD

1+ $1.5600 —

10+ $0.9840 -37%

100+ $0.6562 -58%

500+ $0.5154 -67%

1,000+ $0.4701 -70%

2,000+ $0.4544 -71% BEST

Specifications

15 parameters

Product Status	Not For New Designs
Voltage - Off State	700 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	100 µA
Voltage - On State (Vtm) (Max)	1.4 V
Current - On State (It (AV)) (Max)	800 mA
Current - On State (It (RMS)) (Max)	1.25 A
Current - Hold (Ih) (Max)	2 mA

Current - Off State (Max)	1 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	25A, 27A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	DO-221AA, SMB Flat Leads
Supplier Device Package	SMBflat-3L
