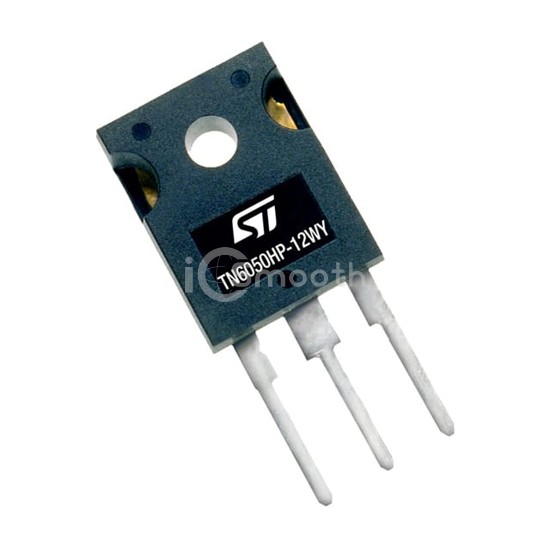

Name: TN6050HP-12WY
Brand: STMicroelectronics
SKU: TN6050HP-12WY
Price: 6.22 USD
Availability: InStock

REF: TN6050HP-12WY STMicroelectronics

TN6050HP-12WY

STMicroelectronics

AVAILABLE IN TO-247 HIGH POWER P

TN6050HP-12WY is a Thyristors - SCRs manufactured by STMicroelectronics. AVAILABLE IN TO-247 HIGH POWER P. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3.

Request a Quote

In Stock: 5,912

Tiered Pricing USD

1+ $6.2200 —

30+ $3.5350 -43%

120+ $2.9454 -53%

510+ $2.5131 -60%

1,020+ $2.4505 -61% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	38 A
Current - On State (It (RMS)) (Max)	60 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	600A, 660A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247-3
