Name: TN5050H-12WY
Brand: STMicroelectronics
SKU: TN5050H-12WY
Price: 6.49 USD
Availability: InStock

REF: TN5050H-12WY STMicroelectronics

TN5050H-12WY

STMicroelectronics

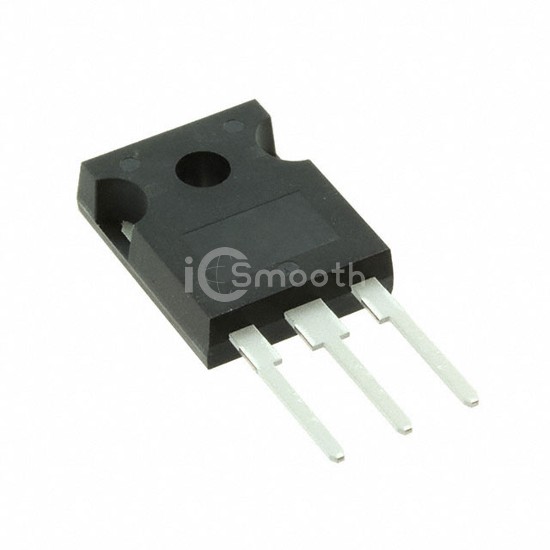

SCR 1.2KV 80A TO247-3

TN5050H-12WY is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1.2KV 80A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case TO-247-3.

Datasheet Request a Quote

In Stock: 3,008

Tiered Pricing USD

1+ $6.4900 —

30+ $3.7050 -43%

120+ $3.0922 -52%

510+ $2.6430 -59%

1,020+ $2.5969 -60% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.55 V
Current - On State (It (AV)) (Max)	51 A
Current - On State (It (RMS)) (Max)	80 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	580A, 633A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247-3
