Name: TN4050HP-12WY
Brand: STMicroelectronics
SKU: TN4050HP-12WY
Price: 5.60 USD
Availability: InStock

REF: TN4050HP-12WY STMicroelectronics

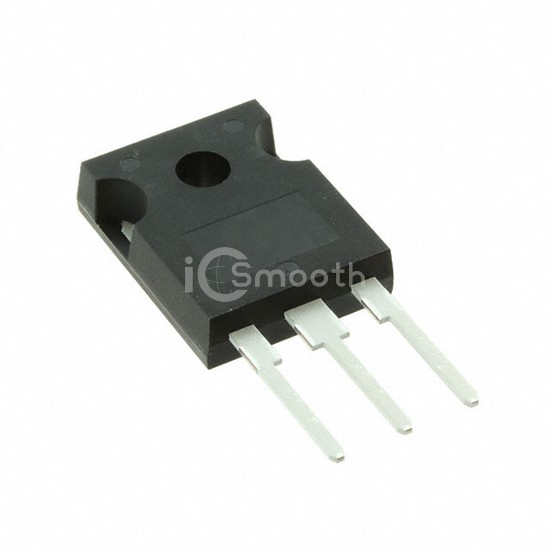

TN4050HP-12WY

STMicroelectronics

1200 V, 40 A AUTOMOTIVE GRADE AE

TN4050HP-12WY is a Thyristors - SCRs manufactured by STMicroelectronics. 1200 V, 40 A AUTOMOTIVE GRADE AE. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 8,908

Tiered Pricing USD

1+ $5.6000 —

30+ $3.1617 -44%

120+ $2.6238 -53%

510+ $2.2295 -60%

1,020+ $2.1338 -62% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.55 V
Current - On State (It (AV)) (Max)	25 A
Current - On State (It (RMS)) (Max)	40 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	400A, 440A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247-3
