Name: TN4050-12PI
Brand: STMicroelectronics
SKU: TN4050-12PI
Price: 4.83 USD
Availability: InStock

REF: TN4050-12PI STMicroelectronics

TN4050-12PI

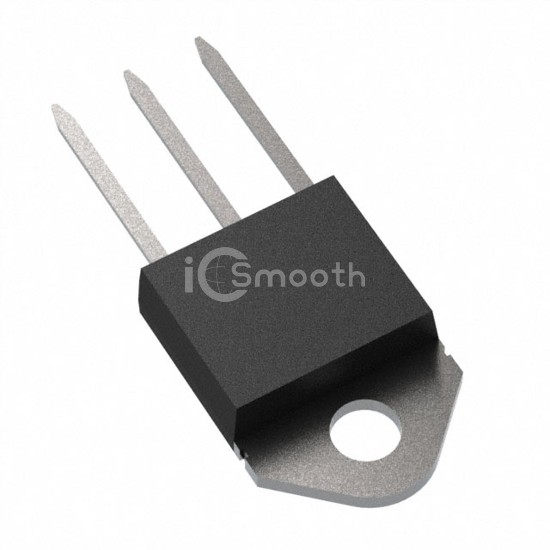

SCR 1.2KV 40A TOP3

TN4050-12PI is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1.2KV 40A TOP3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TOP-3.

Datasheet Request a Quote

In Stock: 287

Tiered Pricing USD

1+ $4.8300 —

30+ $2.6923 -44%

120+ $2.2216 -54%

510+ $1.8763 -61%

1,020+ $1.7503 -64%

2,010+ $1.7464 -64% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.75 V
Current - On State (It (AV)) (Max)	25 A
Current - On State (It (RMS)) (Max)	40 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	400A, 420A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TOP-3
Supplier Device Package	TOP3
