Name: TN3015H-6I
Brand: STMicroelectronics
SKU: TN3015H-6I
Price: 2.17 USD
Availability: InStock

REF: TN3015H-6I STMicroelectronics

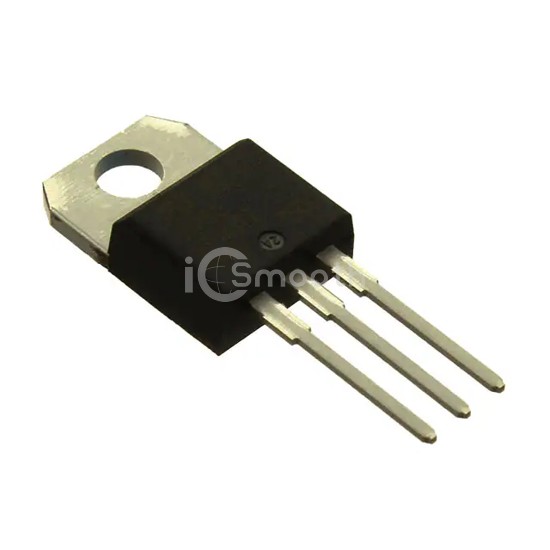

TN3015H-6I

SCR 600MV 30A TO220AB

TN3015H-6I is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 600MV 30A TO220AB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 8,074

Tiered Pricing USD

1+ $2.1700 —

10+ $1.3880 -36%

100+ $0.9420 -57%

500+ $0.7508 -65%

1,000+ $0.6894 -68%

2,000+ $0.6377 -71%

5,000+ $0.5873 -73% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 mV
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	15 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	19 A
Current - On State (It (RMS)) (Max)	30 A
Current - Hold (Ih) (Max)	60 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	270A, 295A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB Insulated
