Name: TN3015H-6G
Brand: STMicroelectronics
SKU: TN3015H-6G
Price: 1.90 USD
Availability: InStock

REF: TN3015H-6G STMicroelectronics

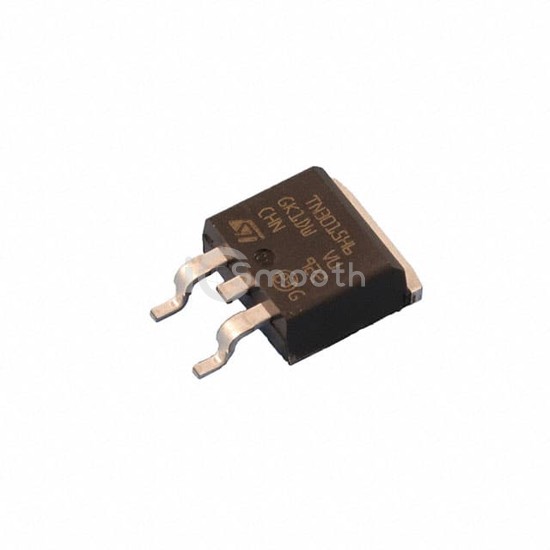

TN3015H-6G

SCR 600MV 30A D2PAK

TN3015H-6G is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 600MV 30A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 7,513

Tiered Pricing USD

1+ $1.9000 —

10+ $1.2120 -36%

100+ $0.8163 -57%

500+ $0.6469 -66%

1,000+ $0.5924 -69%

2,000+ $0.5465 -71%

5,000+ $0.4969 -74%

10,000+ $0.4901 -74% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	15 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	19 A
Current - On State (It (RMS)) (Max)	30 A
Current - Hold (Ih) (Max)	60 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	270A, 295A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK
