Name: T410-700H
Brand: STMicroelectronics
SKU: T410-700H
Availability: InStock

REF: T410-700H STMicroelectronics

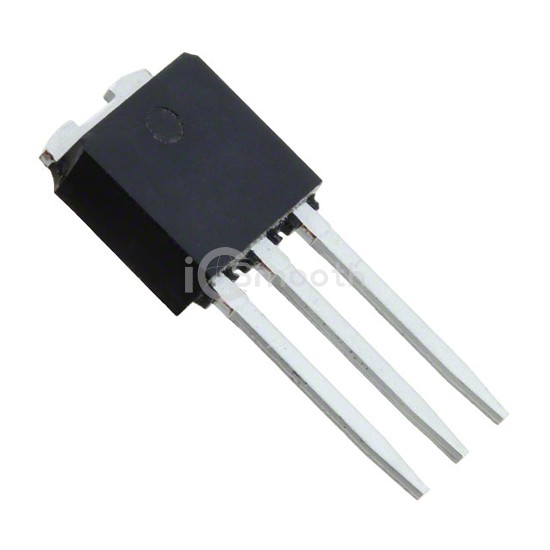

T410-700H

TRIAC SENS GATE 700V 4A IPAK

T410-700H is a Thyristors - TRIACs manufactured by STMicroelectronics. TRIAC SENS GATE 700V 4A IPAK. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 4,637

Specifications

13 parameters

Product Status	Obsolete
Triac Type	Logic - Sensitive Gate
Voltage - Off State	700 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	30A, 31A
Current - Gate Trigger (Igt) (Max)	10 mA

Current - Hold (Ih) (Max)	15 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	I-PAK
