STM32WL55CCU6

In Stock: 10

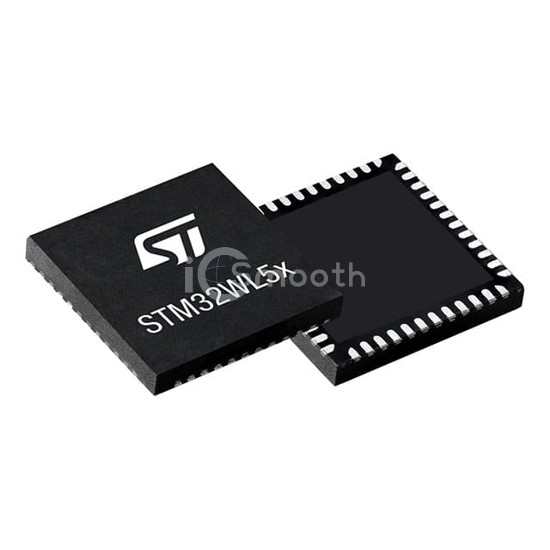

STM32WL55CCU6 - STMicroelectronics - RF Transceiver ICs
REF: STM32WL55CCU6 STMicroelectronics
STM32WL55CCU6

STMicroelectronics

MULTIPROTOCOL LPWAN 32-BIT ARM?C

STM32WL55CCU6 is a RF Transceiver ICs manufactured by STMicroelectronics. MULTIPROTOCOL LPWAN 32-BIT ARM?C. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.8V ~ 3.6V, package / case 48-UFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 10

Tiered Pricing USD
1+ $9.4300 —
10+ $7.3450 -22%
25+ $6.8232 -28%
100+ $6.2494 -34%
260+ $5.9657 -37%
520+ $5.8027 -38%
1,040+ $5.6685 -40% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4
ProtocolLoRaWAN 1.0, Sigfox
ModulationBPSK, GFSK, GMSK, FSK, MSK
Frequency150MHz ~ 960MHz
Data Rate (Max)300kbps
Power - Output22dBm
Sensitivity-148dBm
Memory Size256kB Flash
Serial InterfacesADC, GPIO, I²C, SPI, IrDA, UART, USART
GPIO29
Voltage - Supply1.8V ~ 3.6V
Current - Receiving4.82mA
Current - Transmitting21mA ~ 120mA
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case48-UFQFN Exposed Pad
Supplier Device Package48-UFQFPN (7x7)
