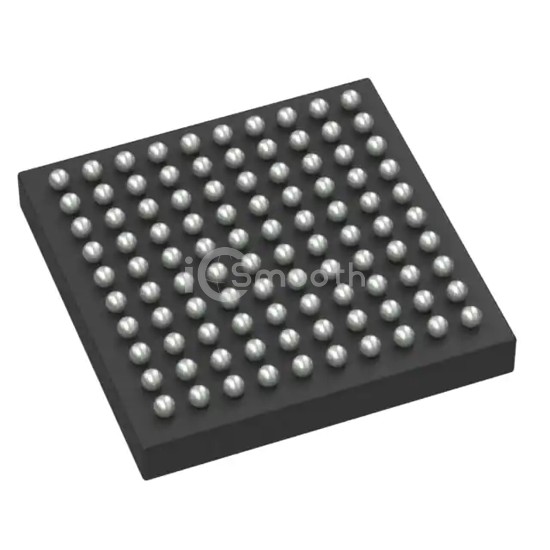

Name: STM32WB55VEY7TR
Brand: STMicroelectronics
SKU: STM32WB55VEY7TR
Price: 8.04 USD
Availability: InStock

REF: STM32WB55VEY7TR STMicroelectronics

STM32WB55VEY7TR

STMicroelectronics

ULTRA-LOW-POWER DUAL CORE ARM CO

STM32WB55VEY7TR is a RF Transceiver ICs manufactured by STMicroelectronics. ULTRA-LOW-POWER DUAL CORE ARM CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 1.71V ~ 3.6V, package / case 100-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 3,056

Tiered Pricing USD

1+ $8.0400 —

10+ $6.2250 -23%

25+ $5.7716 -28%

100+ $5.2734 -34%

250+ $5.0360 -37%

500+ $4.8928 -39%

1,000+ $4.7750 -41% BEST

Specifications

19 parameters

Product Status	Active
Type	TxRx + MCU
RF Family/Standard	802.15.4, Bluetooth
Protocol	Bluetooth v5.2, Thread, Zigbee®
Modulation	GFSK
Frequency	2.405GHz ~ 2.48GHz
Data Rate (Max)	2Mbps
Power - Output	6dBm
Sensitivity	-100dBm
Memory Size	512kB Flash, 256kB SRAM

Serial Interfaces	ADC, I²C, SPI, UART, USART, USB
GPIO	72
Voltage - Supply	1.71V ~ 3.6V
Current - Receiving	4.5mA ~ 7.9mA
Current - Transmitting	5.2mA ~ 12.7mA
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	100-UFBGA, WLCSP
Supplier Device Package	100-WLCSP (4.4x4.38)
