Name: STM32H742AII6
Brand: STMicroelectronics
SKU: STM32H742AII6
Price: 9.59 USD
Availability: InStock

REF: STM32H742AII6 STMicroelectronics

STM32H742AII6

STMicroelectronics

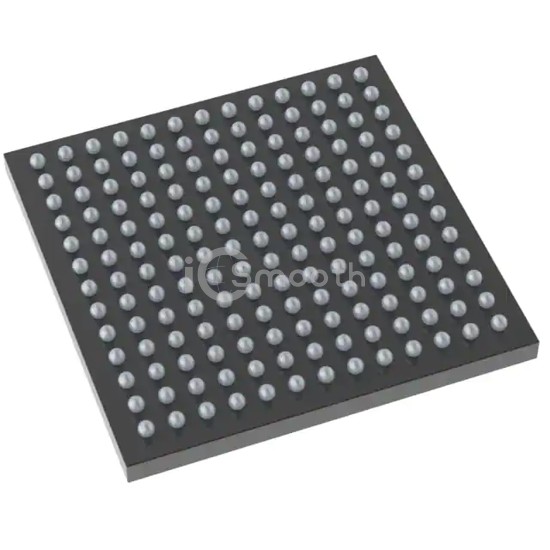

IC MCU 32BIT 2MB FLASH 169UFBGA

STM32H742AII6 is a Embedded - Microcontrollers manufactured by STMicroelectronics. IC MCU 32BIT 2MB FLASH 169UFBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.62V ~ 3.6V, package / case 169-UFBGA.

Datasheet Request a Quote

In Stock: 9,685

Specifications

18 parameters

Product Status	Active
Core Processor	ARM® Cortex®-M7
Core Size	32-Bit Single-Core
Speed	480MHz
Connectivity	CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals	Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Number of I/O	131
Program Memory Size	2MB (2M x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	692K x 8
Voltage - Supply (Vcc/Vdd)	1.62V ~ 3.6V
Data Converters	A/D 36x16b; D/A 2x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	169-UFBGA
Supplier Device Package	169-UFBGA (7x7)
