STGYA50H120DF2 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGYA50H120DF2 STMicroelectronics
STGYA50H120DF2

STMicroelectronics

TRENCH GATE FIELD-STOP, 1200 V,

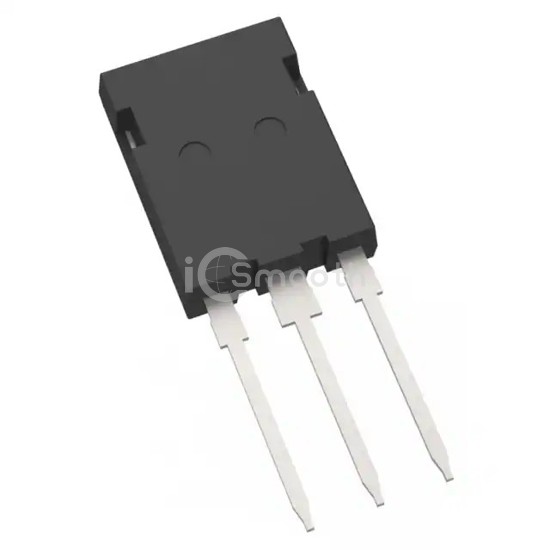

STGYA50H120DF2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP, 1200 V,. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 85

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 50A
Power - Max535 W
Switching Energy2mJ (on), 2.1mJ (off)
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C40ns/284ns
Test Condition600V, 50A, 10Ohm, 15V
Reverse Recovery Time (trr)340 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
