STGY50NC60WD

In Stock: 4,448

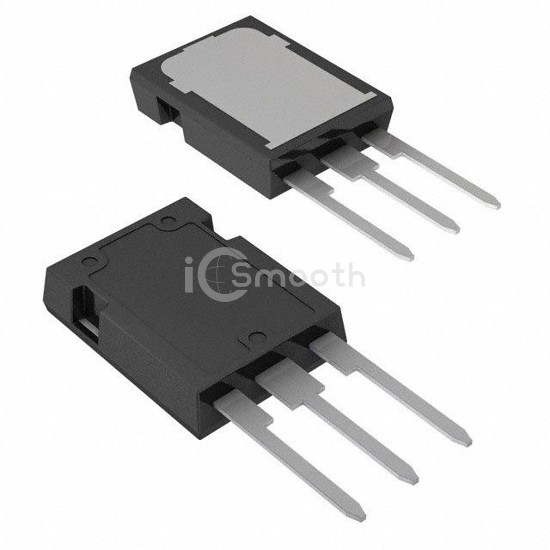

STGY50NC60WD - STMicroelectronics - Transistors - IGBTs - Single
REF: STGY50NC60WD STMicroelectronics
STGY50NC60WD

STMicroelectronics

IGBT 600V 110A 278W MAX247

STGY50NC60WD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 110A 278W MAX247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 110 A.

Datasheet Request a Quote

In Stock: 4,448

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)110 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 40A
Power - Max278 W
Switching Energy365µJ (on), 560µJ (off)
Input TypeStandard
Gate Charge195 nC
Td (on/off) @ 25°C52ns/240ns
Test Condition390V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)55 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageMAX247™
