STGY40NC60VD

In Stock: 8,919
STGY40NC60VD - STMicroelectronics - Transistors - IGBTs - Single
REF: STGY40NC60VD STMicroelectronics

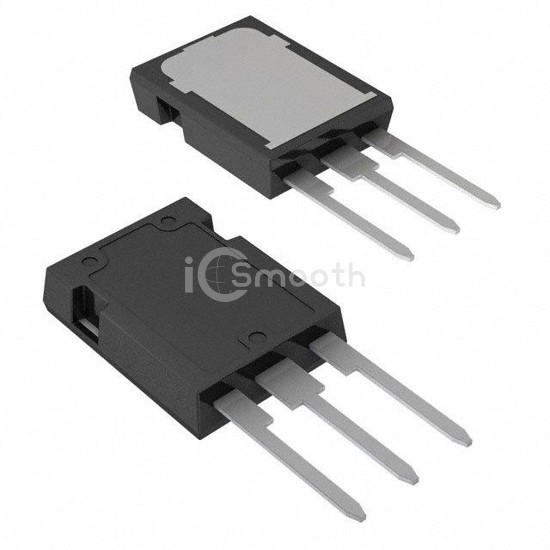

STGY40NC60VD

STMicroelectronics

IGBT 600V 80A 260W MAX247

STGY40NC60VD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 80A 260W MAX247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 8,919

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 40A
Power - Max260 W
Switching Energy330µJ (on), 720µJ (off)
Input TypeStandard
Gate Charge214 nC
Td (on/off) @ 25°C43ns/140ns
Test Condition390V, 40A, 3.3Ohm, 15V
Reverse Recovery Time (trr)44 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageMAX247™
