Name: STGWA80H65DFB
Brand: STMicroelectronics
SKU: STGWA80H65DFB
Availability: InStock

REF: STGWA80H65DFB STMicroelectronics

STGWA80H65DFB

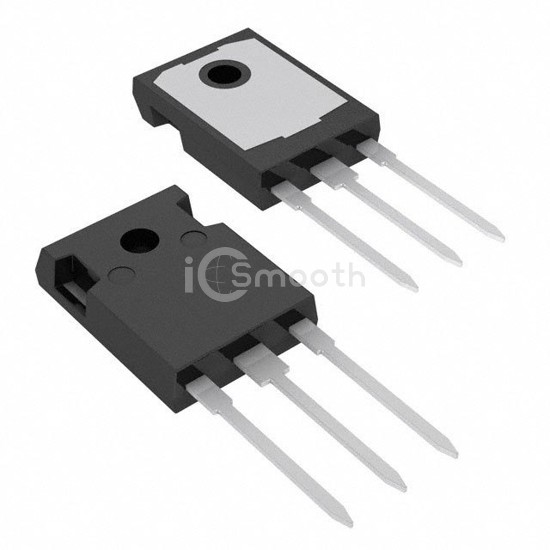

IGBT BIPO 650V 80A TO247-3

STGWA80H65DFB is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT BIPO 650V 80A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 120 A.

Datasheet Request a Quote

In Stock: 3,068

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	120 A
Current - Collector Pulsed (Icm)	240 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 80A
Power - Max	469 W
Switching Energy	2.1mJ (on), 1.5mJ (off)
Input Type	Standard

Gate Charge	414 nC
Td (on/off) @ 25°C	84ns/280ns
Test Condition	400V, 80A, 10Ohm, 15V
Reverse Recovery Time (trr)	85 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247 Long Leads
