Name: STGWA50M65DF2
Brand: STMicroelectronics
SKU: STGWA50M65DF2
Price: 5.53 USD
Availability: InStock

REF: STGWA50M65DF2 STMicroelectronics

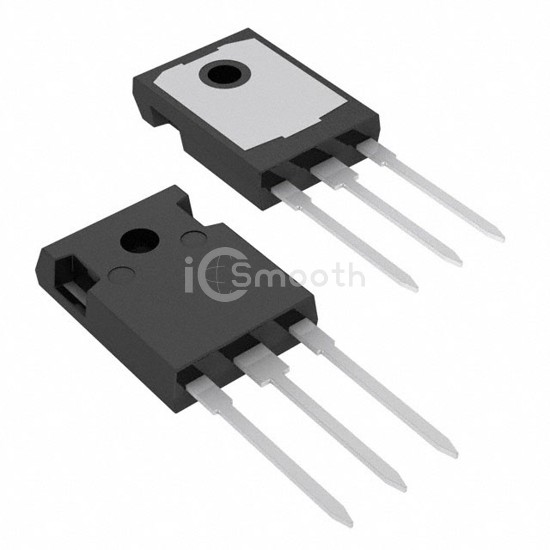

STGWA50M65DF2

STMicroelectronics

TRENCH GATE FIELD-STOP IGBT M SE

STGWA50M65DF2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP IGBT M SE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 5,895

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	150 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 50A
Power - Max	375 W
Switching Energy	880µJ (on), 1.57mJ (off)
Input Type	Standard

Gate Charge	150 nC
Td (on/off) @ 25°C	42ns/130ns
Test Condition	400V, 50A, 6.8Ohm, 15V
Reverse Recovery Time (trr)	162 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247 Long Leads
