STGWA50IH65DF

In Stock: 3,312

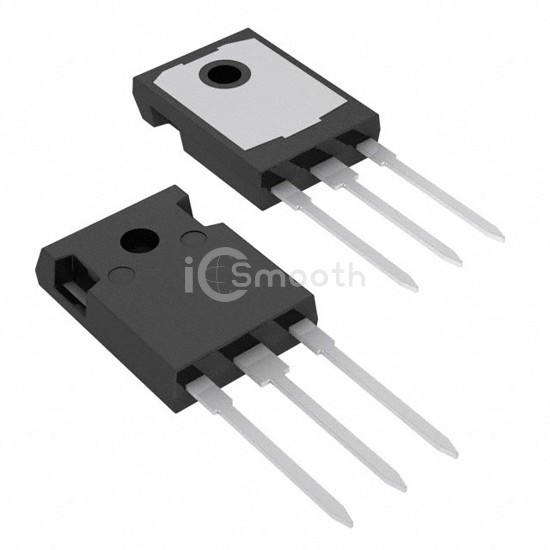

STGWA50IH65DF - STMicroelectronics - Transistors - IGBTs - Single
REF: STGWA50IH65DF STMicroelectronics
STGWA50IH65DF

STMicroelectronics

TRENCH GATE FIELD-STOP IGBT 650

STGWA50IH65DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP IGBT 650. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 3,312

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 50A
Power - Max300 W
Switching Energy284µJ (off)
Input TypeStandard
Gate Charge158 nC
Td (on/off) @ 25°C-/260ns
Test Condition400V, 50A, 22Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 Long Leads
