STGWA50HP65FB2

In Stock: 9,067

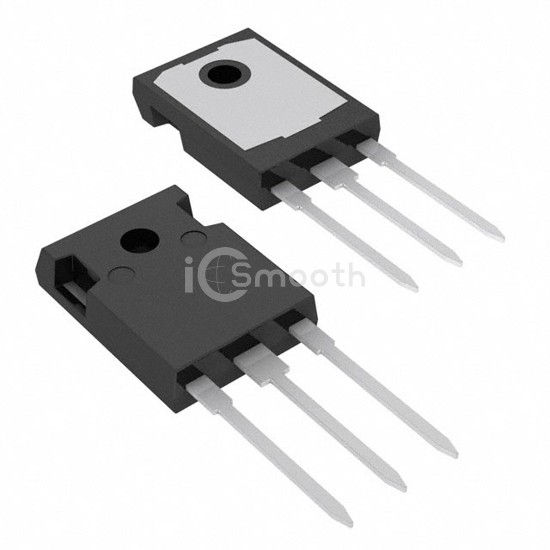

STGWA50HP65FB2 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGWA50HP65FB2 STMicroelectronics
STGWA50HP65FB2

STMicroelectronics

TRENCH GATE FIELD-STOP, 650 V, 5

STGWA50HP65FB2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP, 650 V, 5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 86 A.

Request a Quote

In Stock: 9,067

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)86 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 50A
Power - Max272 W
Switching Energy580µJ (off)
Input TypeStandard
Gate Charge151 nC
Td (on/off) @ 25°C-/115ns
Test Condition400V, 50A, 4.7Ohm, 15V
Reverse Recovery Time (trr)140 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 Long Leads
