STGWA30IH65DF

In Stock: 10

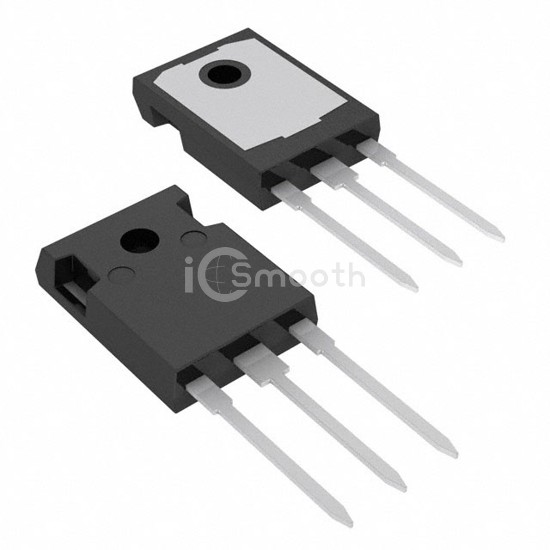

STGWA30IH65DF - STMicroelectronics - Transistors - IGBTs - Single
REF: STGWA30IH65DF STMicroelectronics
STGWA30IH65DF

STMicroelectronics

TRENCH GATE FIELD-STOP 650 V, 30

STGWA30IH65DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP 650 V, 30. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.

Request a Quote

In Stock: 10

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)90 A
Vce(on) (Max) @ Vge, Ic2.05V @ 15V, 30A
Power - Max180 W
Switching Energy123µJ (off)
Input TypeStandard
Gate Charge80 nC
Td (on/off) @ 25°C-/200ns
Test Condition400V, 30A, 22Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 Long Leads
