STGW8M120DF3

In Stock: 5,611
STGW8M120DF3 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGW8M120DF3 STMicroelectronics
STGW8M120DF3

STMicroelectronics

TRENCH GATE FIELD-STOP IGBT M SE

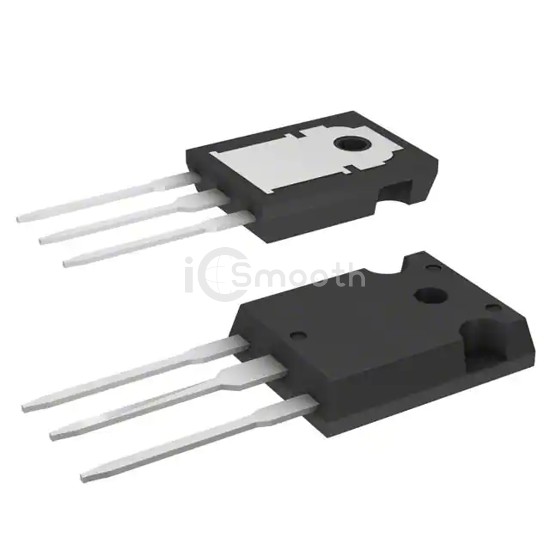

STGW8M120DF3 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP IGBT M SE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 16 A.

Datasheet Request a Quote

In Stock: 5,611

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)16 A
Current - Collector Pulsed (Icm)32 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 8A
Power - Max167 W
Switching Energy390µJ (on), 370µJ (Off)
Input TypeStandard
Gate Charge32 nC
Td (on/off) @ 25°C20ns/126ns
Test Condition600V, 8A, 33Ohm, 15V
Reverse Recovery Time (trr)103 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
