STGW75H65DFB2-4

In Stock: 54

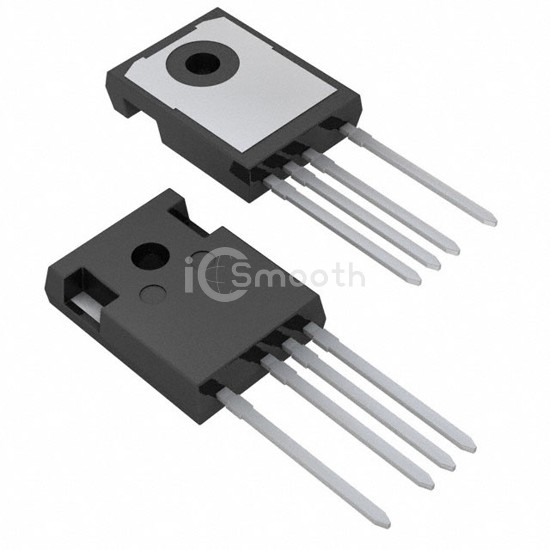

STGW75H65DFB2-4 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGW75H65DFB2-4 STMicroelectronics
STGW75H65DFB2-4

STMicroelectronics

TRENCH GATE FIELD-STOP, 650 V, 7

STGW75H65DFB2-4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP, 650 V, 7. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 115 A.

Request a Quote

In Stock: 54

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)115 A
Current - Collector Pulsed (Icm)225 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 75A
Power - Max357 W
Switching Energy992µJ (on), 766µJ (off)
Input TypeStandard
Gate Charge207 nC
Td (on/off) @ 25°C22ns/121ns
Test Condition400V, 75A, 10Ohm, 15V
Reverse Recovery Time (trr)88 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247-4
