STGW60H65DFB-4

In Stock: 7,966
STGW60H65DFB-4 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGW60H65DFB-4 STMicroelectronics
STGW60H65DFB-4

STMicroelectronics

IGBT

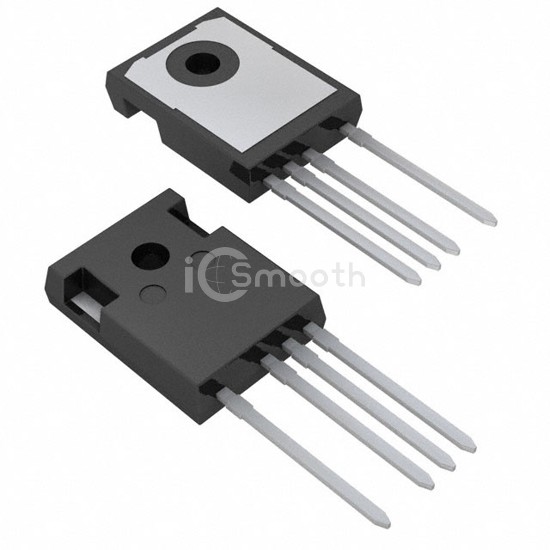

STGW60H65DFB-4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 7,966

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)240 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 60A
Power - Max375 W
Switching Energy346µJ (on), 1.161mJ (off)
Input TypeStandard
Gate Charge306 nC
Td (on/off) @ 25°C65ns/261ns
Test Condition400V, 60A, 10Ohm, 15V
Reverse Recovery Time (trr)60 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247-4
