STGW50H65DFB2-4

In Stock: 10

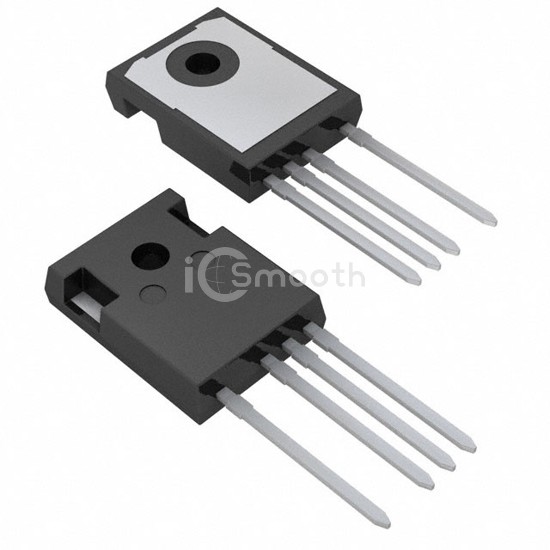

STGW50H65DFB2-4 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGW50H65DFB2-4 STMicroelectronics
STGW50H65DFB2-4

STMicroelectronics

TRENCH GATE FIELD-STOP, 650 V, 5

STGW50H65DFB2-4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP, 650 V, 5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 86 A.

Request a Quote

In Stock: 10

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)86 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 50A
Power - Max272 W
Switching Energy629µJ (on), 478µJ (off)
Input TypeStandard
Gate Charge151 nC
Td (on/off) @ 25°C18ns/128ns
Test Condition400V, 50A, 12Ohm, 15V
Reverse Recovery Time (trr)92 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackageTO-247-4
