STGW38IH130D

In Stock: 1,851

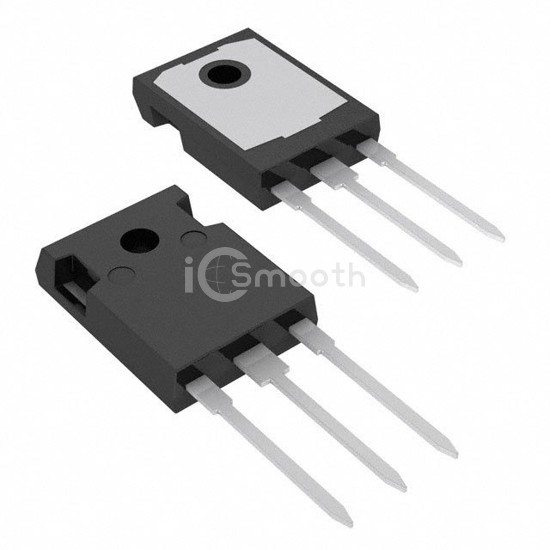

STGW38IH130D - STMicroelectronics - Transistors - IGBTs - Single
REF: STGW38IH130D STMicroelectronics
STGW38IH130D

STMicroelectronics

IGBT 1300V 63A 250W TO247

STGW38IH130D is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 1300V 63A 250W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 63 A.

Datasheet Request a Quote

In Stock: 1,851

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1300 V
Current - Collector (Ic) (Max)63 A
Current - Collector Pulsed (Icm)125 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 20A
Power - Max250 W
Switching Energy3.4mJ (off)
Input TypeStandard
Gate Charge127 nC
Td (on/off) @ 25°C-/284ns
Test Condition960V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 Long Leads
